How much weight can a truck ladder rack hold?

The common ratings are 800 and 1,000 pounds, both real and both describing the rack rather than your truck. Three things sit in between.

By Mike M.Updated October 2026

AA-Racks X31-J Ladder Rack, 800 lb, with 8 Non-Drilling Z-Clamps — How much weight can a truck ladder rack hold? — Featured here: the AA-Racks AA-Racks X31-J Ladder Rack, 800 lb, with 8 Non-Drilling Z-Clamps.

Heads up: we earn an Amazon commission when you buy through our links, at no extra cost to you. Prices are pulled live from Amazon and were last checked October 5, 2026; when we cannot verify a price we say so rather than print an old one. How this site is funded.

How we know:Owner-report-verifiedSpec-verifiedWhat these mean

The published figures in this category cluster at 800 lb and 1,000 lb. Both are real numbers and both describe the rack as a structure. What they do not describe is how much you can safely carry on your truck, and the gap between those two things is where people get hurt.

Treat the rack's rating as a ceiling for the steel, not a target. Your mounting points and your payload are almost always the real limits, and a loaded rack raises the center of gravity more than people expect.

Three things between the rating and reality

Your mounting points. A rack clamped to a bed rail lip transfers its whole load into sheet metal. The rack is rarely the limit; the attachment usually is. This is also why re-torquing after the first loaded trips matters.
Your payload. The door-jamb sticker gives the figure for your specific truck as built. The rack itself is dead weight before you load it, and a cover, a tool box and a drawer system come out of the same budget.
Where the weight sits. A rack puts the load high and often forward. The same weight on the bed floor affects the truck far less, and a rack full of conduit changes braking and cornering in a way that is immediately noticeable.

How to work out your actual limit

Find the door-jamb payload figure. Driver's door frame, for your truck as built. Not the model maximum.
Subtract everything already fitted. Rack, cover, tool box, liner, boards, drawer system.
Subtract people and fuel. Both count toward payload.
Subtract tongue weight if you tow. It is payload.
What remains is your cargo allowance, and it is almost always lower than the rack's rating.

On most half-tons you reach the payload figure well before you reach 800 pounds on a rack. Which means the rack rating is rarely the number that should be governing your decisions.

Racks with published ratings

AA-RacksOwner-report-verified

AA-Racks X31-J Ladder Rack, 800 lb, with 8 Non-Drilling Z-Clamps

Best for: A no-drill rack install

Our score8.8/10

$119.90at Amazon

Price as of October 5, 2026. #ad

The same 800 lb X31 with eight Z-clamps instead of drilled mounts. The clamps are why you buy this version: no holes in the bed rail, nothing to seal, and the whole rack comes off in twenty minutes.

Who should skip it. Clamps need sound rails with accessible lips. Some newer trucks have bonded rail caps that leave nothing to clamp to.

Build: 8.0
Capacity: 8.4
Install: 9.4
Versatility: 8.6
Value: 9.2

What works

Zero holes in the truck
Comes off completely for a clear bed
Same 800 lb rating as the drilled version

What does not

Clamps need accessible rail lips
Clamped racks need re-torquing after the first loaded trips
Steel and salt

Published specifications

Capacity: 800 lb
Mounting: 8 non-drilling Z-clamps
Material: Steel
Model: X31-J

Figures from the Manufacturer listing.

Fits

Beds with accessible rail lips for Z-clamps

Does not fit

Trucks with bonded or capped rails leaving no clamp surface
Loads over 800 lb

VEVOROwner-report-verified

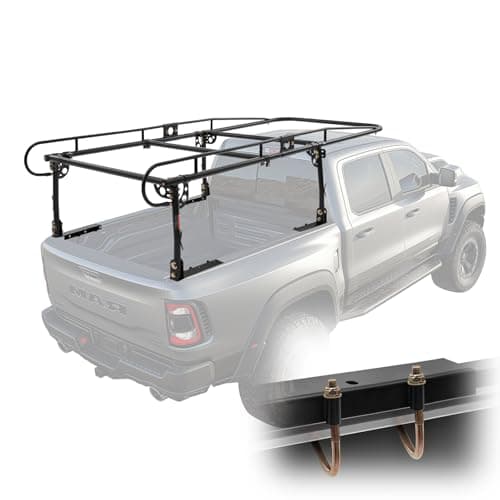

VEVOR Truck Ladder Rack, 1000 lb, Drill or No-Drill

Best for: The highest published rating for the money

Our score8.4/10

$250.47at Amazon

Price as of October 5, 2026. #ad

1000 lb published capacity with both drilling and non-drilling install options in the box. If what you actually need is a number on paper for heavier loads, this is the cheapest way to get it.

Who should skip it. A high rating on a budget rack is a rating for the tube, not the whole installation. Check your clamp or bolt points against the load before trusting it.

Build: 7.4
Capacity: 9.0
Install: 8.4
Versatility: 8.0
Value: 9.4

What works

1000 lb published
Both mounting methods included
Very low price for the rating

What does not

Rating is the rack, not your mounting points
Finish quality is budget-grade
Fit is generic — measure first

Published specifications

Capacity: 1000 lb / 454 kg
Install: Drilling or non-drilling
Material: Steel
Finish: Not published

Figures from the Manufacturer listing.

Fits

Full-size beds
Trucks needing more than 800 lb of published capacity

Does not fit

Mid-size beds without verifying the width
Trucks with rail-mount boxes

ECOTRICOwner-report-verified

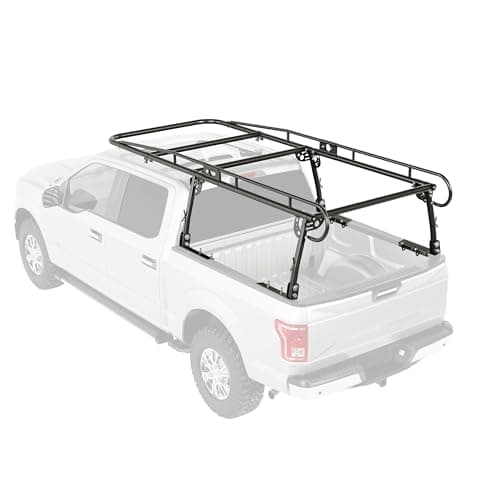

ECOTRIC Adjustable Truck Bed Rack, 58-69 in, 1000 lb

Best for: A rack for lumber and kayaks both

Our score8.6/10

$299.99at Amazon

Price as of October 5, 2026. #ad

Adjustable 58-69 in, rated to 1000 lb, and tall enough to carry over the cab line. The height is what makes it usable for lumber as well as ladders — a low rack forces long material to sit on the tailgate.

Who should skip it. Height costs you in wind noise and in low clearances. If the truck lives in a parking garage, measure the entrance first.

Build: 7.8
Capacity: 9.0
Install: 8.0
Versatility: 9.2
Value: 8.8

What works

Tall enough to clear the cab for long material
1000 lb published capacity
Adjustable width covers most full-size beds

What does not

Height adds wind noise
Clearance problems in garages and drive-throughs
Generic fitment

Published specifications

Width adjustment: 58-69 in
Capacity: 1000 lb
Type: Contractor ladder and lumber rack
Material: Not published

Figures from the Manufacturer listing.

Fits

Full-size beds 58 to 69 in between the rails

Does not fit

Trucks parked in height-restricted garages
Beds outside the 58-69 in range

Thule TracRacSpec-verified

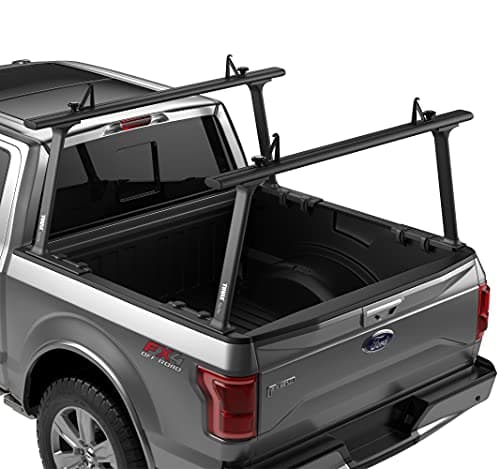

Thule TracRac TracONE Truck Rack

Best for: The rack that holds its alignment

Our score8.6/10

$699.95at Amazon

Price as of October 5, 2026. #ad

TracRac's entry rack, built on the clamp system the trade standardized on. The reason to pay for it is that the crossbars stay square to each other after a year of loading — budget racks walk out of alignment and then you are fighting the straps.

Who should skip it. It is a lot of money for a two-bar rack. If the rack carries a ladder twice a month, a clamp-on steel rack does the job for a quarter of the price.

Build: 9.2
Capacity: 8.4
Install: 8.8
Versatility: 8.6
Value: 7.0

What works

Crossbars stay square under repeated loading
No-drill clamp system comes off cleanly when the truck is sold
Thule accessory ecosystem fits it

What does not

Premium price for a two-bar rack
Published capacity not stated on the listing
Occupies the rails, so a side tool box is out

Published specifications

Type: Over-bed two-bar truck rack
Install: Clamp-on, no drilling
Finish: Black
Published capacity: Not published

Figures from the Manufacturer listing.

Fits

Full-size beds with straight, undamaged rails

Does not fit

Beds with a rail-mounted tool box or topsider
Mid-size beds — verify the application first

The handling change nobody mentions

Weight on a rack is weight above the bed rails, which means above the roll center. The practical effects are real and worth being ready for:

Braking distances lengthen more than the same weight low in the bed would suggest.
Crosswind sensitivity increases substantially with a loaded over-cab rack.
Cornering feels different — slower to respond, then more committed once it does.
An unbalanced load is worse than a heavier balanced one. Material all on one side of the rack is the setup that surprises people.

None of that is an argument against a rack. It is an argument for loading it evenly, strapping it properly and driving the truck you are actually driving rather than the one you were driving yesterday.

What the rating does not cover at all

	Covered by the rack rating?	Who sets the limit
Static load on the bars	Yes	The manufacturer
Dynamic load over bumps	Implicitly, with margin	The manufacturer
Your clamp or bolt mounting	No	Your bed and your installation
Your truck's payload	No	The door-jamb sticker
Overhanging material	No	State flagging law
Ladder handling on site	No	Occupational safety requirements

The last two are legal rather than mechanical. Overhang flagging requirements are set by state law for non-commercial loads, and ladder use on a jobsite falls under occupational safety requirements. Neither is satisfied by a rack rating.

Practical loading rules

Heaviest item lowest and most forward. On a rack that means the bar nearest the cab.
Balance side to side. More important than total weight for how the truck behaves.
Two straps per long item, one near each end. A single mid-span strap lets it pivot.
Load stops at the front. Without them, hard braking slides material forward over the cab.
Re-check at the first stop. Webbing bedded onto an aluminum ladder rail loses tension in the first few miles.

Questions people actually ask

How much weight can a truck ladder rack hold?: The common published figures are 800 lb and 1,000 lb, and both describe the rack as a structure. Your mounting points, your truck's payload and the raised center of gravity all sit between that figure and what you can safely carry.
Is the rack rating or my payload the real limit?: Your payload, almost always. On most half-tons you reach the door-jamb figure — after subtracting the rack, a cover, a tool box, people, fuel and tongue weight — well before you reach 800 pounds on the bars.
Does a loaded ladder rack change how the truck drives?: Yes, noticeably. Weight above the bed rails lengthens braking distances more than the same weight low in the bed would, increases crosswind sensitivity, and changes cornering response. An unbalanced load is worse than a heavier balanced one.
Why do some racks not publish a capacity?: There is no mandatory standard in this category, so there is nothing to publish against. Where a figure is absent we say so rather than estimating. Treat an unpublished rating as a reason to load conservatively rather than as a neutral.
How should I strap a ladder to a rack?: Two straps, one near each end, plus load stops at the front of the rack. A single mid-span strap lets the ladder pivot and then go slack, and hard braking without load stops slides it forward over the cab. Re-check tension at the first stop.
